INA CSCA050
Thin Section Bearings
Deep groove ball bearing, Thin section bearing CSCA, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock

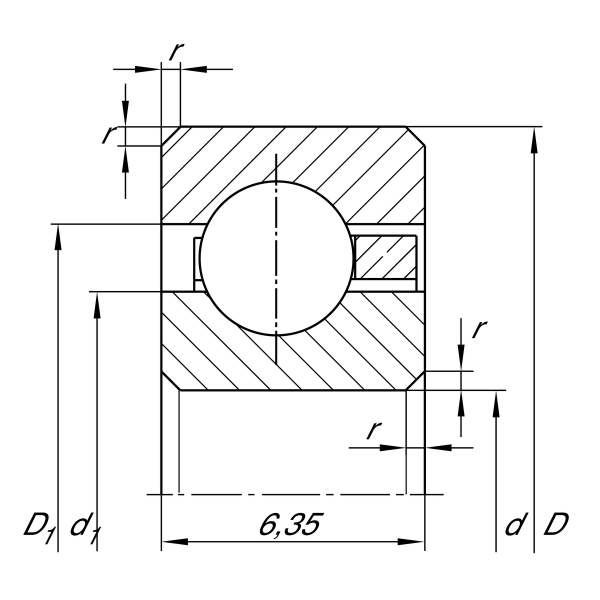

Main Dimensions & Performance Data
d
127 mm
Bore diameter
D
139.7 mm
Outside diameter
B
6.35 mm
Width
Cr
4,550 N
Basic dynamic load rating, radial
C0r
6,400 N
Basic static load rating, radial
CG
4,350 1/min
Limiting speed
≈m
110 g
Weight
