INA CSCA055
Thin Section Bearings
Deep groove ball bearing, Thin section bearing CSCA, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock

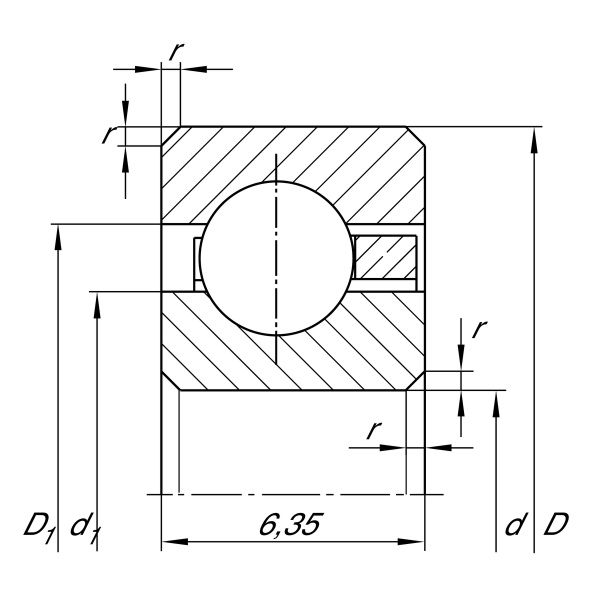

Main Dimensions & Performance Data
d
139.7 mm
Bore diameter
D
152.4 mm
Outside diameter
B
6.35 mm
Width
Cr
4,700 N
Basic dynamic load rating, radial
C0r
7,100 N
Basic static load rating, radial
CG
3,950 1/min
Limiting speed
≈m
110 g
Weight
