INA CSCB042
Thin Section Bearings
Deep groove ball bearing, Thin section bearing CSCB, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

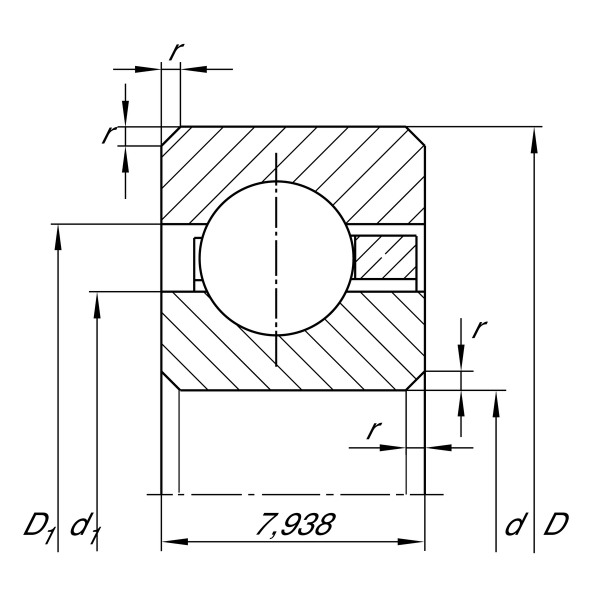

Main Dimensions & Performance Data
d
107.95 mm
Bore diameter
D
123.825 mm
Outside diameter
B
7.938 mm
Width
Cr
6,200 N
Basic dynamic load rating, radial
C0r
7,300 N
Basic static load rating, radial
CG
5,000 1/min
Limiting speed
≈m
140 g
Weight
