INA CSCC045
Thin Section Bearings
Deep groove ball bearing, Thin section bearing CSCC, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock

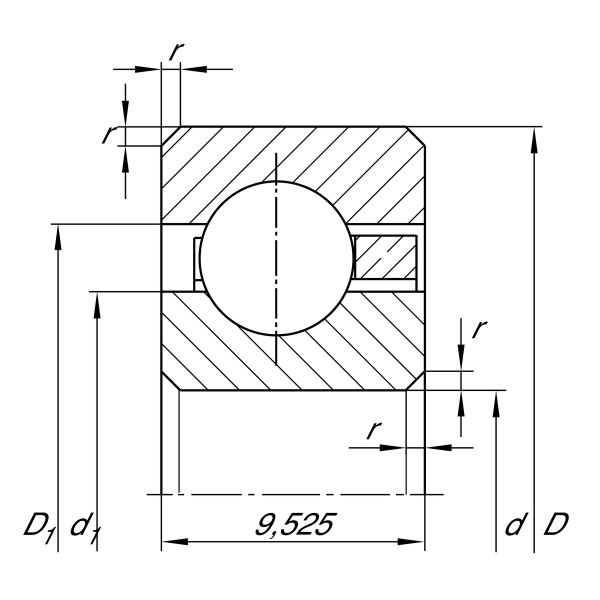

Main Dimensions & Performance Data
d
114.3 mm
Bore diameter
D
133.35 mm
Outside diameter
B
9.525 mm
Width
Cr
8,100 N
Basic dynamic load rating, radial
C0r
9,200 N
Basic static load rating, radial
CG
4,600 1/min
Limiting speed
≈m
220 g
Weight
