INA CSCC100
Thin Section Bearings

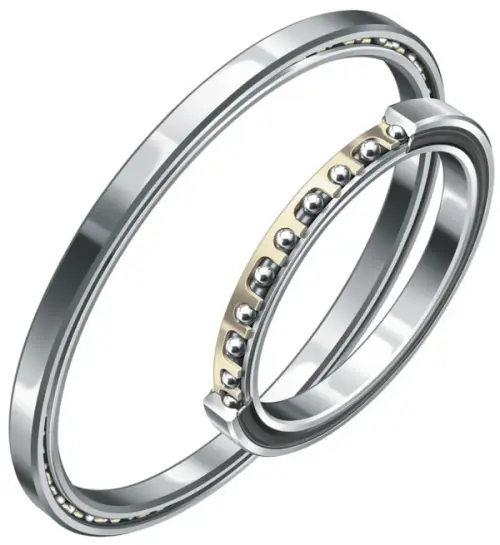

Deep groove ball bearing, Thin section bearing CSCC, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

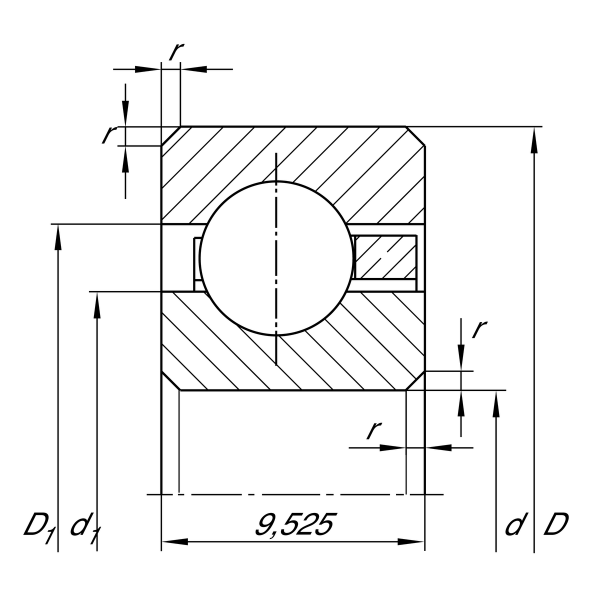

Main Dimensions & Performance Data
d
254 mm
Bore diameter
D
273.05 mm
Outside diameter
B
9.525 mm
Width
Cr
10,800 N
Basic dynamic load rating, radial
C0r
20,200 N
Basic static load rating, radial
CG
2,100 1/min
Limiting speed
≈m
480 g
Weight
