INA CSCC120
Thin Section Bearings
Deep groove ball bearing, Thin section bearing CSCC, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

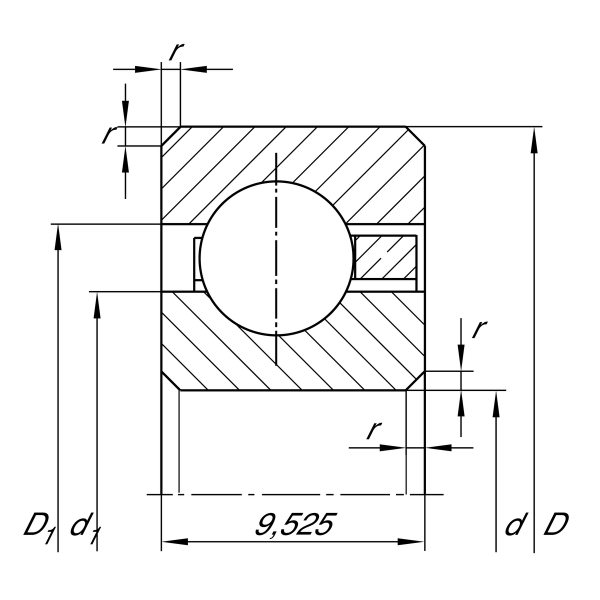

Main Dimensions & Performance Data
d
304.8 mm
Bore diameter
D
323.85 mm
Outside diameter
B
9.525 mm
Width
Cr
10,800 N
Basic dynamic load rating, radial
C0r
24,200 N
Basic static load rating, radial
CG
1,740 1/min
Limiting speed
≈m
0.57 kg
Weight
