INA CSCD055
Thin Section Bearings

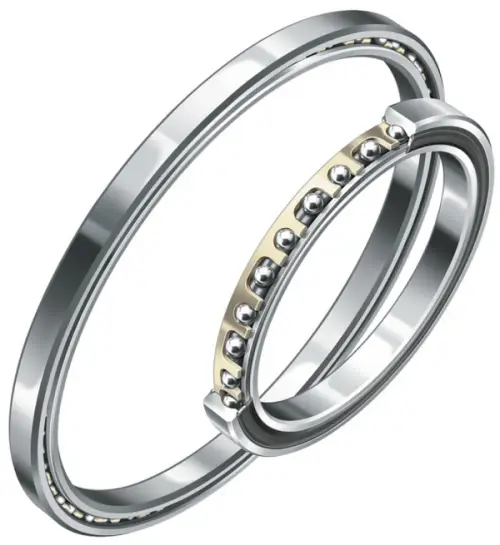

Deep groove ball bearing, Thin section bearing CSCD, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock

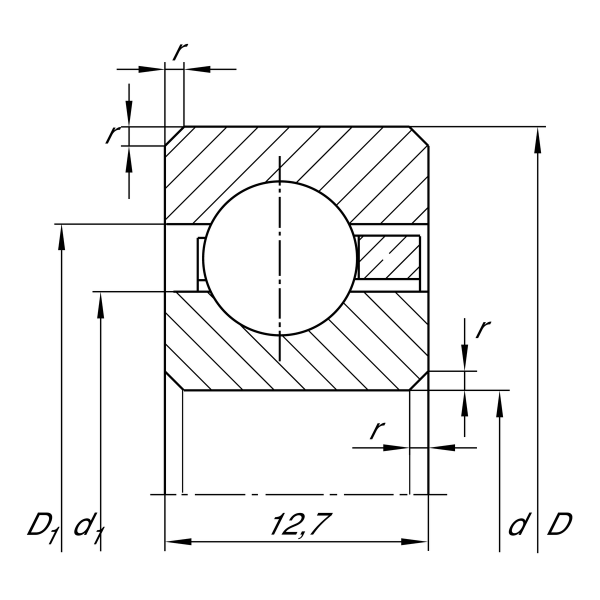

Main Dimensions & Performance Data
d
139.7 mm
Bore diameter
D
165.1 mm
Outside diameter
B
12.7 mm
Width
Cr
13,800 N
Basic dynamic load rating, radial
C0r
16,200 N
Basic static load rating, radial
CG
3,650 1/min
Limiting speed
≈m
480 g
Weight
