INA CSCD140
Thin Section Bearings

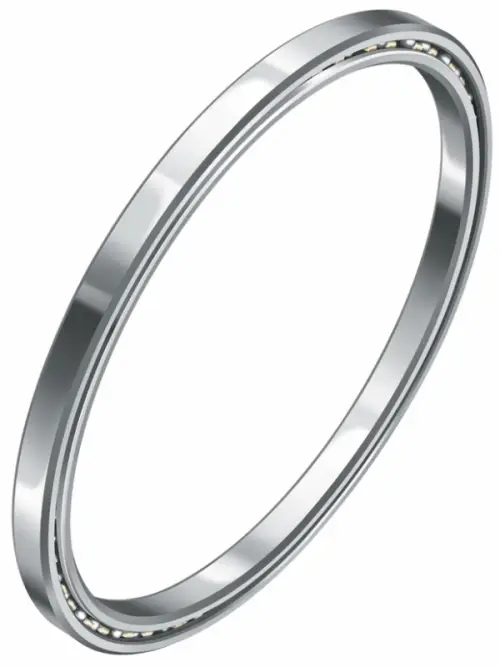

Deep groove ball bearing, Thin section bearing CSCD, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

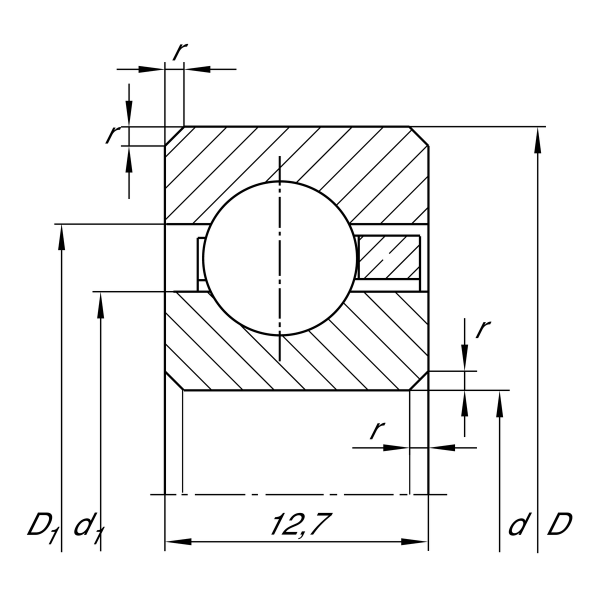

Main Dimensions & Performance Data
d
355.6 mm
Bore diameter
D
381 mm
Outside diameter
B
12.7 mm
Width
Cr
18,100 N
Basic dynamic load rating, radial
C0r
40,500 N
Basic static load rating, radial
CG
1,470 1/min
Limiting speed
≈m
1.24 kg
Weight
