INA CSCF060
Thin Section Bearings
Deep groove ball bearing, Thin section bearing CSCF, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock

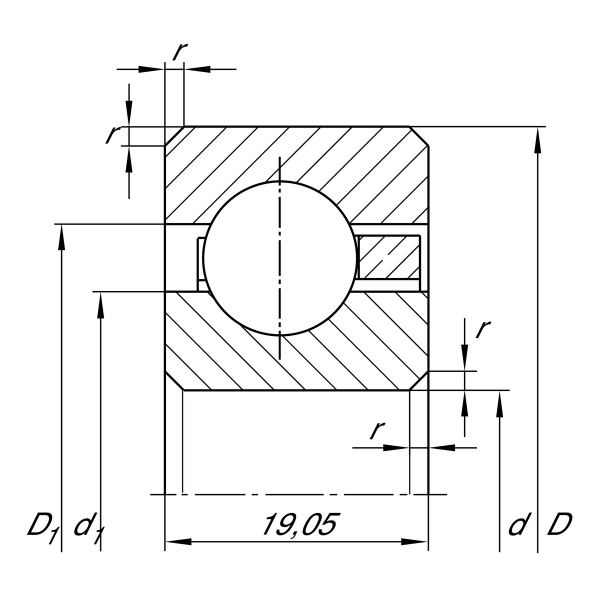

Main Dimensions & Performance Data
d
152.4 mm
Bore diameter
D
190.5 mm
Outside diameter
B
19.05 mm
Width
Cr
27,000 N
Basic dynamic load rating, radial
C0r
29,500 N
Basic static load rating, radial
CG
3,150 1/min
Limiting speed
≈m
1.22 kg
Weight
