INA CSCF065
Thin Section Bearings
Deep groove ball bearing, Thin section bearing CSCF, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock

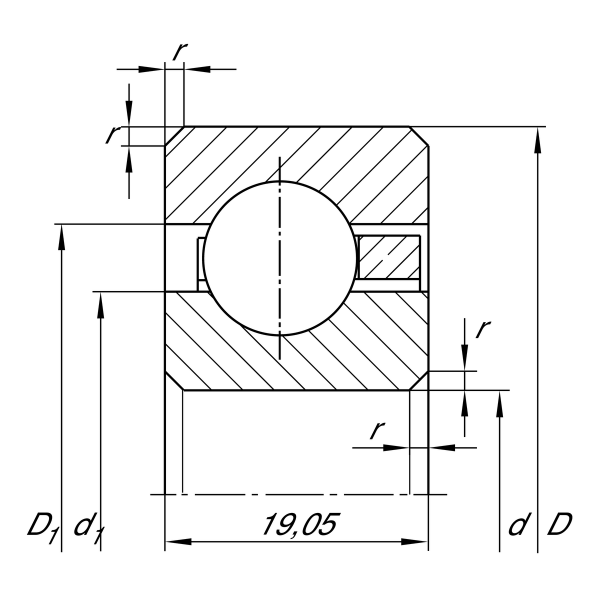

Main Dimensions & Performance Data
d
165.1 mm
Bore diameter
D
203.2 mm
Outside diameter
B
19.05 mm
Width
Cr
28,000 N
Basic dynamic load rating, radial
C0r
31,500 N
Basic static load rating, radial
CG
2,950 1/min
Limiting speed
≈m
1.32 kg
Weight
