INA CSCF090
Thin Section Bearings
Deep groove ball bearing, Thin section bearing CSCF, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

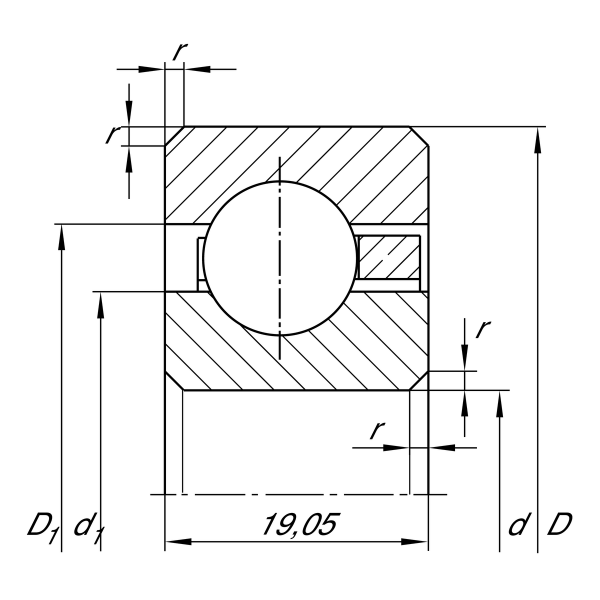

Main Dimensions & Performance Data
d
228.6 mm
Bore diameter
D
266.7 mm
Outside diameter
B
19.05 mm
Width
Cr
31,500 N
Basic dynamic load rating, radial
C0r
43,500 N
Basic static load rating, radial
CG
2,180 1/min
Limiting speed
≈m
1.77 kg
Weight
