INA CSCF100
Thin Section Bearings

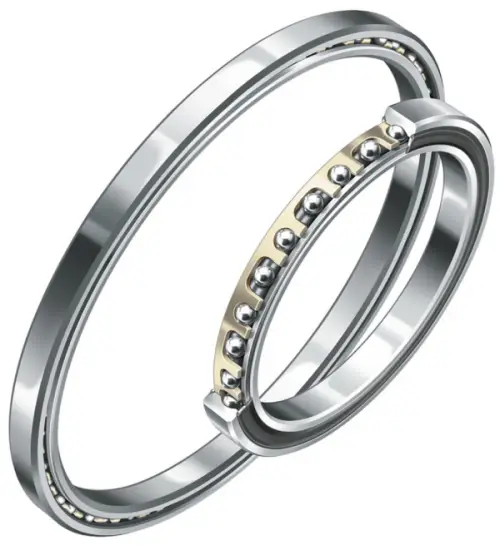

Deep groove ball bearing, Thin section bearing CSCF, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

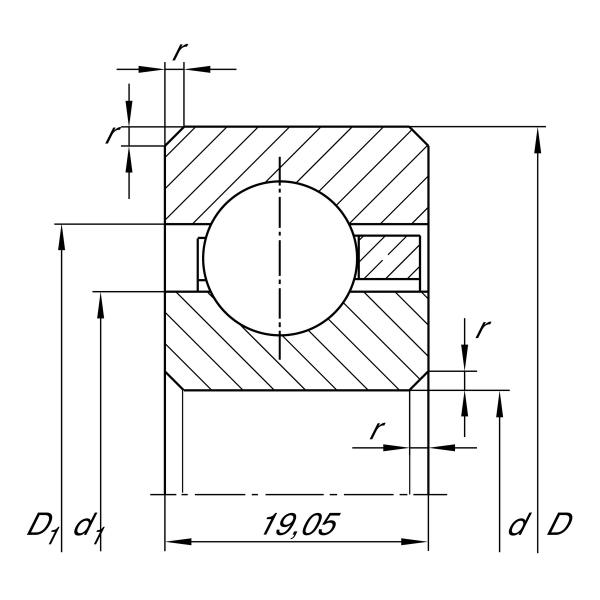

Main Dimensions & Performance Data
d
254 mm
Bore diameter
D
292.1 mm
Outside diameter
B
19.05 mm
Width
Cr
32,500 N
Basic dynamic load rating, radial
C0r
48,000 N
Basic static load rating, radial
CG
1,970 1/min
Limiting speed
≈m
1.95 kg
Weight
