INA CSCF110
Thin Section Bearings
Deep groove ball bearing, Thin section bearing CSCF, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

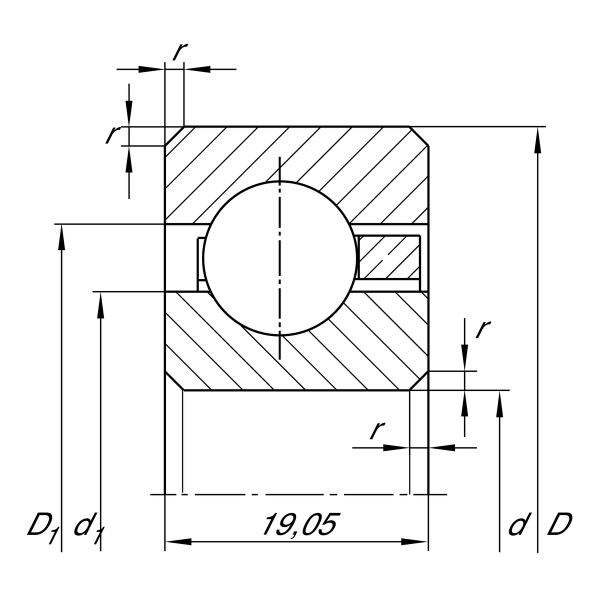

Main Dimensions & Performance Data
d
279.4 mm
Bore diameter
D
317.5 mm
Outside diameter
B
19.05 mm
Width
Cr
33,500 N
Basic dynamic load rating, radial
C0r
53,000 N
Basic static load rating, radial
CG
1,800 1/min
Limiting speed
≈m
2.18 kg
Weight
