INA CSCG065
Thin Section Bearings
Deep groove ball bearing, Thin section bearing CSCG, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock

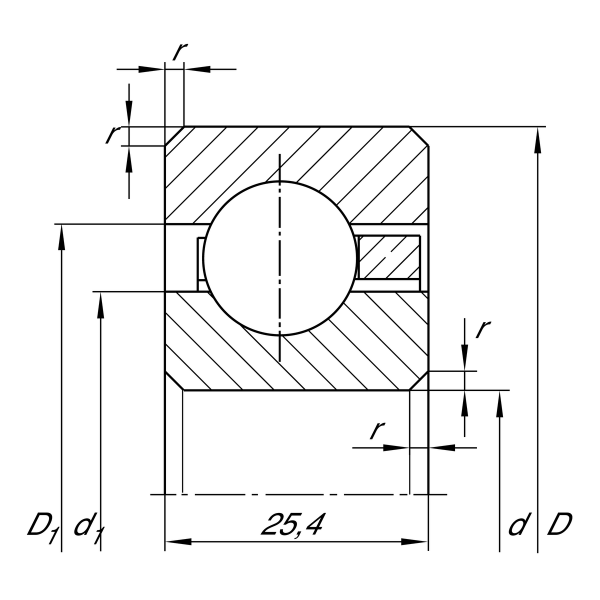

Main Dimensions & Performance Data
d
165.1 mm
Bore diameter
D
215.9 mm
Outside diameter
B
25.4 mm
Width
Cr
44,000 N
Basic dynamic load rating, radial
C0r
46,000 N
Basic static load rating, radial
CG
2,800 1/min
Limiting speed
≈m
2.45 kg
Weight
