INA CSCG100
Thin Section Bearings
Deep groove ball bearing, Thin section bearing CSCG, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

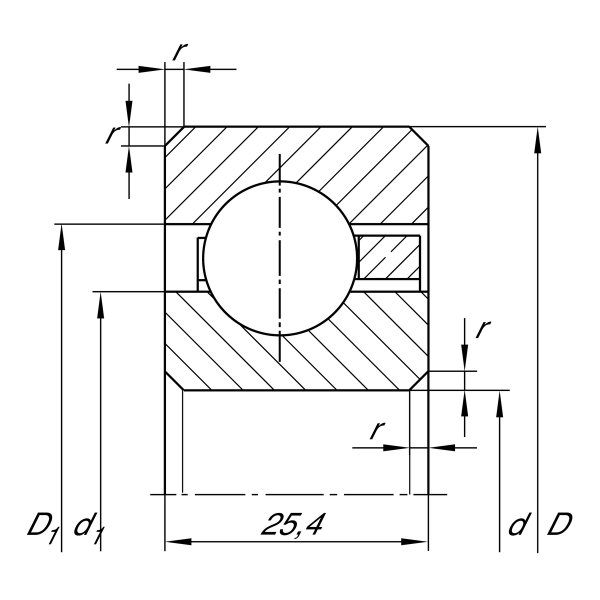

Main Dimensions & Performance Data
d
254 mm
Bore diameter
D
304.8 mm
Outside diameter
B
25.4 mm
Width
Cr
52,000 N
Basic dynamic load rating, radial
C0r
71,000 N
Basic static load rating, radial
CG
1,890 1/min
Limiting speed
≈m
3.58 kg
Weight
