INA CSCU045-2RS
Thin Section Bearings
Deep groove ball bearing, Thin section bearing CSCU..-2RS, seals, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

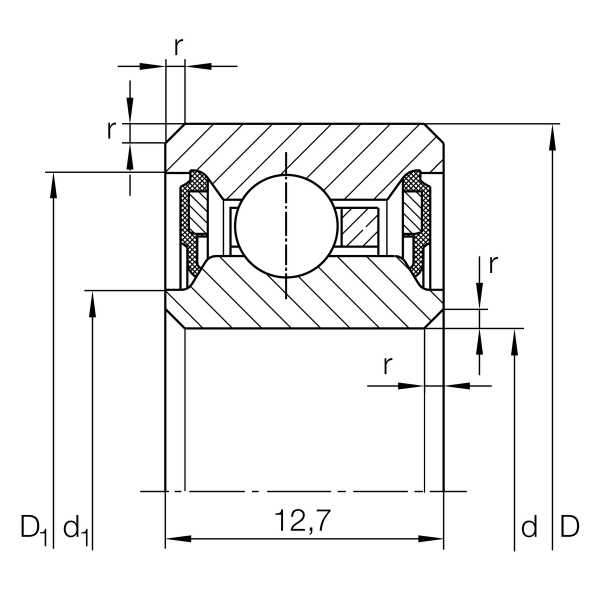

Main Dimensions & Performance Data
d
114.3 mm
Bore diameter
D
133.35 mm
Outside diameter
B
12.7 mm
Width
Cr
8,100 N
Basic dynamic load rating, radial
C0r
9,200 N
Basic static load rating, radial
CG
2,250 1/min
Limiting speed
≈m
280 g
Weight
