INA CSEB060
Thin Section Bearings
Angular contact ball bearing, Thin section bearing CSEB, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock

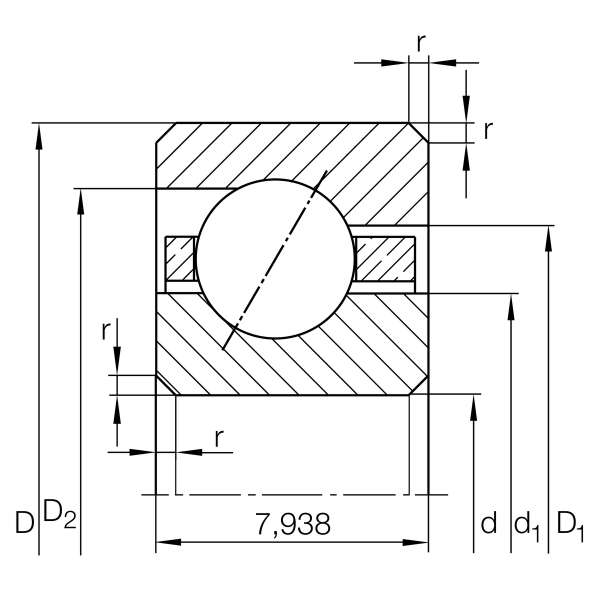

Main Dimensions & Performance Data
d
152.4 mm
Bore diameter
D
168.275 mm
Outside diameter
B
7.938 mm
Width
Cr
7,000 N
Basic dynamic load rating, radial
C0r
12,100 N
Basic static load rating, radial
CG
3,550 1/min
Limiting speed
≈m
200 g
Weight
