INA CSEC040
Thin Section Bearings

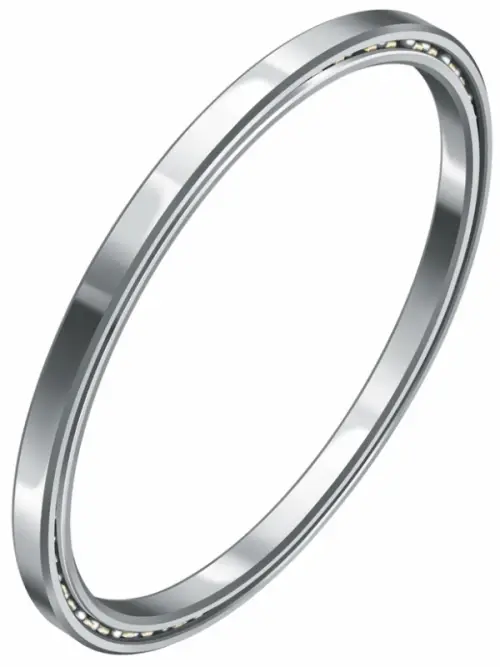

Angular contact ball bearing, Thin section bearing CSEC, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

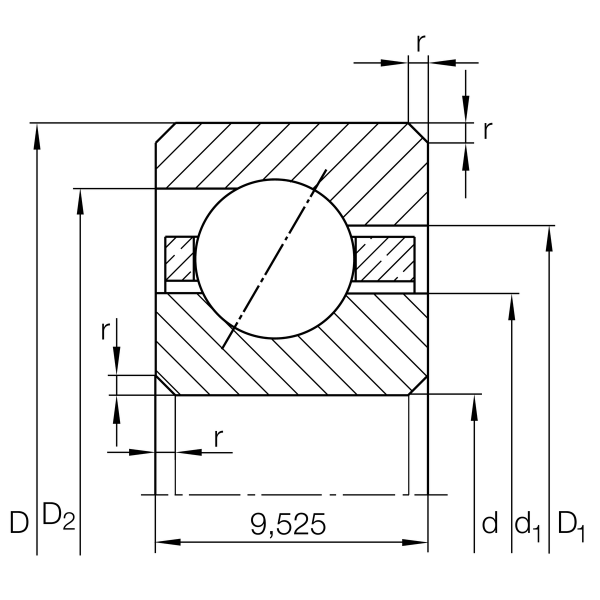

Main Dimensions & Performance Data
d
101.6 mm
Bore diameter
D
120.65 mm
Outside diameter
B
9.525 mm
Width
Cr
8,000 N
Basic dynamic load rating, radial
C0r
10,100 N
Basic static load rating, radial
CG
5,200 1/min
Limiting speed
≈m
200 g
Weight
