INA CSEC047
Thin Section Bearings

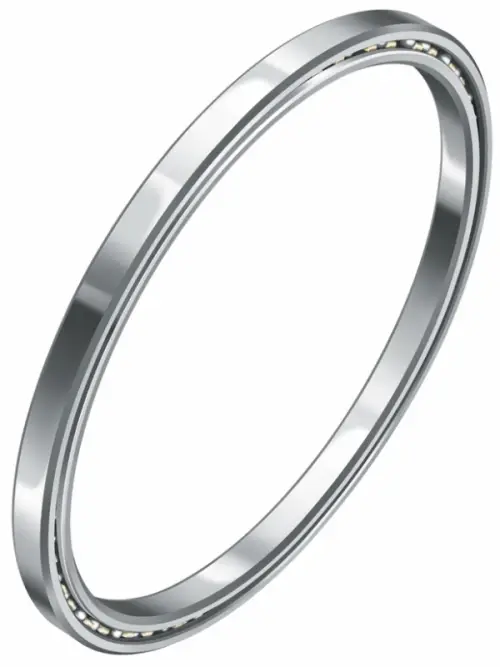

Angular contact ball bearing, Thin section bearing CSEC, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock

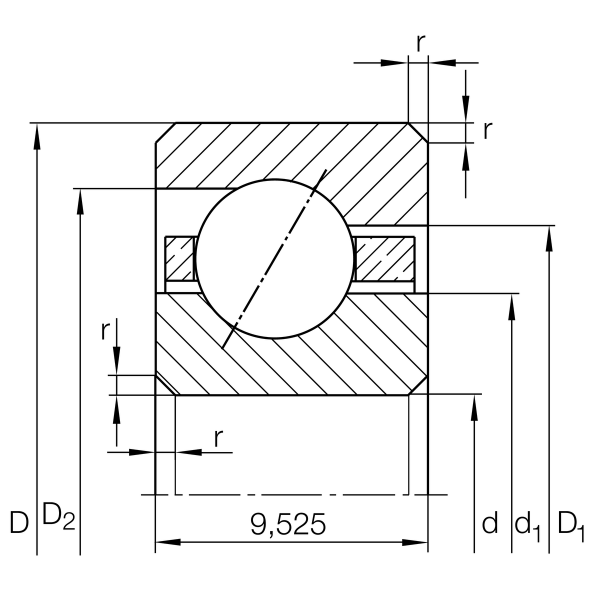

Main Dimensions & Performance Data
d
120.65 mm
Bore diameter
D
139.7 mm
Outside diameter
B
9.525 mm
Width
Cr
8,500 N
Basic dynamic load rating, radial
C0r
12,000 N
Basic static load rating, radial
CG
4,400 1/min
Limiting speed
≈m
230 g
Weight
