INA CSEC060
Thin Section Bearings
Angular contact ball bearing, Thin section bearing CSEC, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock

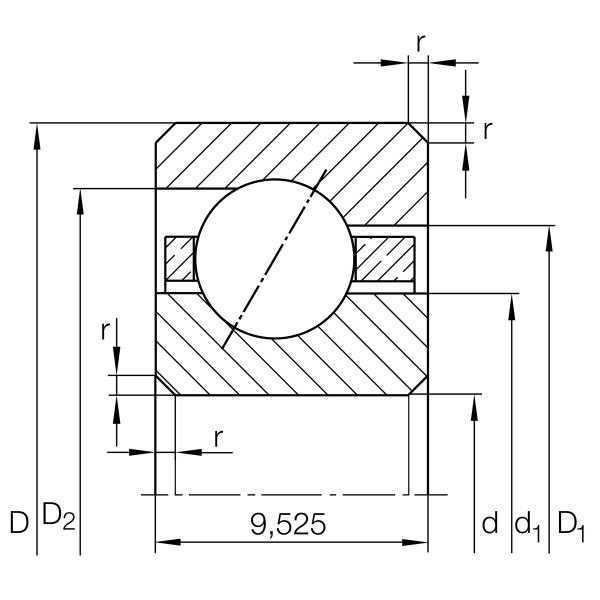

Main Dimensions & Performance Data
d
152.4 mm
Bore diameter
D
171.45 mm
Outside diameter
B
9.525 mm
Width
Cr
9,300 N
Basic dynamic load rating, radial
C0r
15,000 N
Basic static load rating, radial
CG
3,500 1/min
Limiting speed
≈m
290 g
Weight
