INA CSED060
Thin Section Bearings

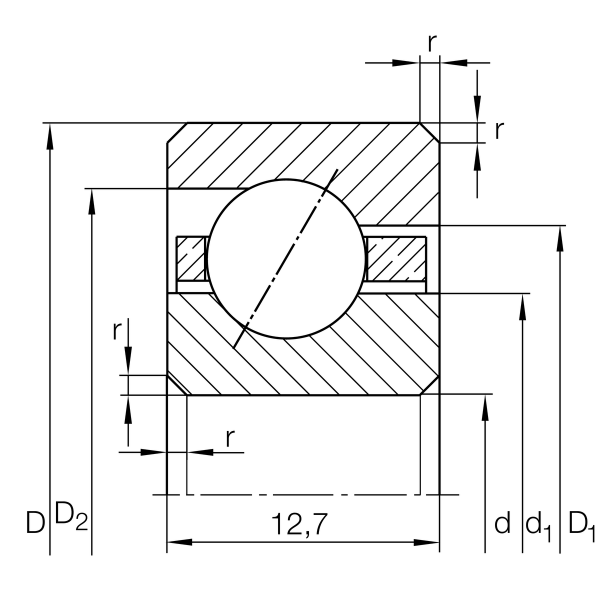

Angular contact ball bearing, Thin section bearing CSED, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
152.4 mm
Bore diameter
D
177.8 mm
Outside diameter
B
12.7 mm
Width
Cr
14,100 N
Basic dynamic load rating, radial
C0r
20,400 N
Basic static load rating, radial
CG
3,400 1/min
Limiting speed
≈m
0.52 kg
Weight
