INA CSED065
Thin Section Bearings

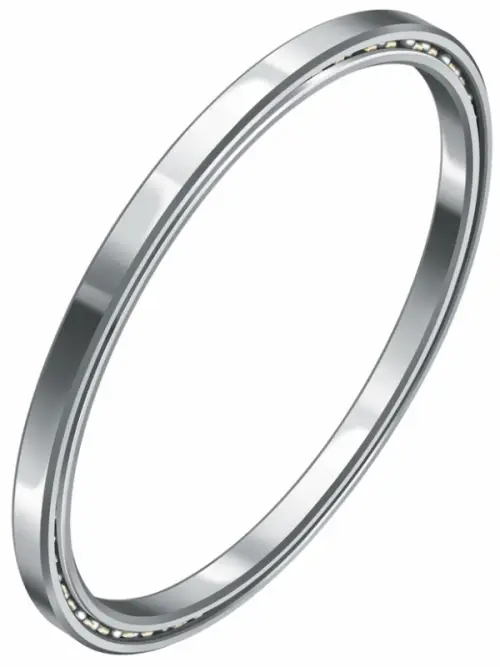

Angular contact ball bearing, Thin section bearing CSED, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

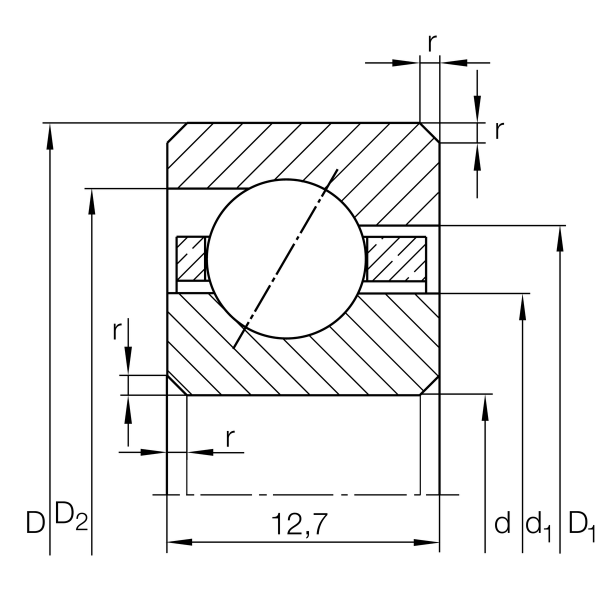

Main Dimensions & Performance Data
d
165.1 mm
Bore diameter
D
190.5 mm
Outside diameter
B
12.7 mm
Width
Cr
14,500 N
Basic dynamic load rating, radial
C0r
22,100 N
Basic static load rating, radial
CG
3,150 1/min
Limiting speed
≈m
0.56 kg
Weight
