INA CSED090
Thin Section Bearings
Angular contact ball bearing, Thin section bearing CSED, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

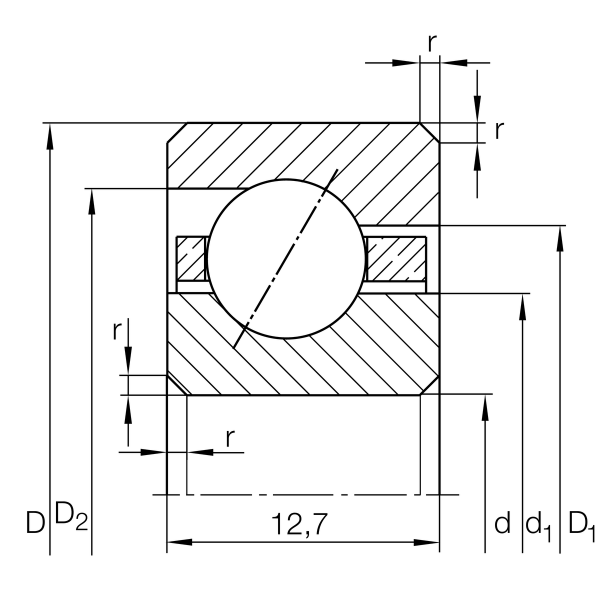

Main Dimensions & Performance Data
d
228.6 mm
Bore diameter
D
254 mm
Outside diameter
B
12.7 mm
Width
Cr
16,300 N
Basic dynamic load rating, radial
C0r
30,500 N
Basic static load rating, radial
CG
2,290 1/min
Limiting speed
≈m
0.77 kg
Weight
