INA CSED100
Thin Section Bearings

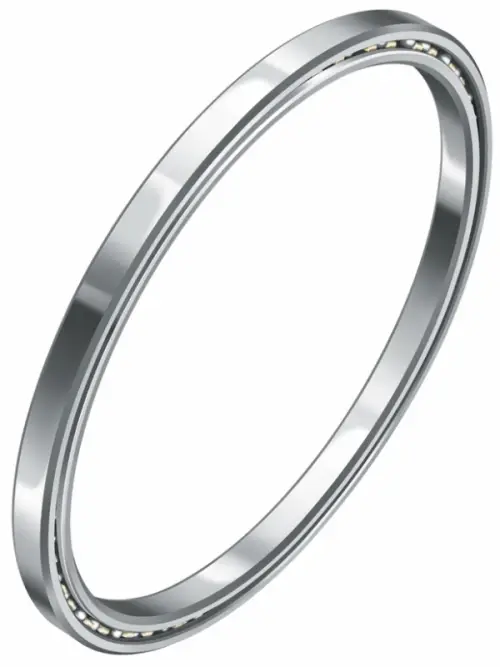

Angular contact ball bearing, Thin section bearing CSED, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

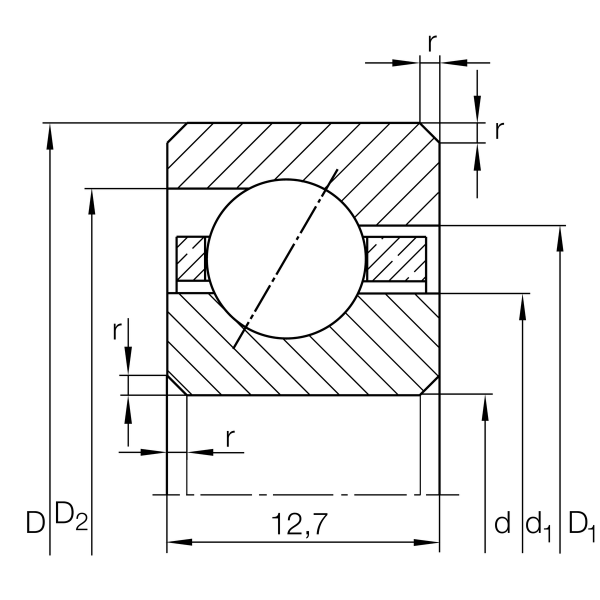

Main Dimensions & Performance Data
d
254 mm
Bore diameter
D
279.4 mm
Outside diameter
B
12.7 mm
Width
Cr
16,900 N
Basic dynamic load rating, radial
C0r
33,500 N
Basic static load rating, radial
CG
2,070 1/min
Limiting speed
≈m
0.85 kg
Weight
