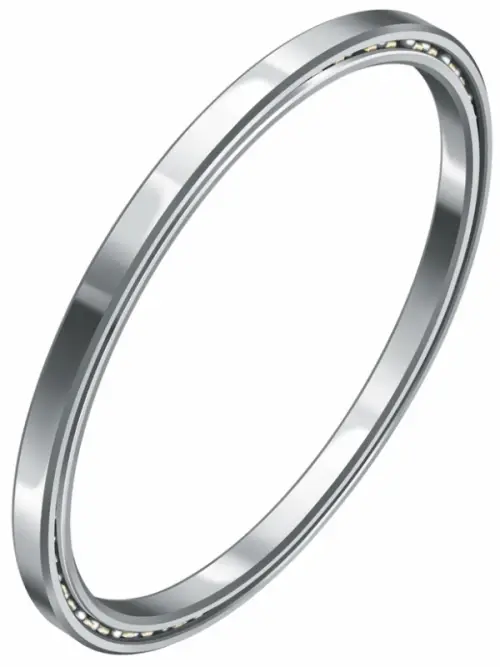

INA CSEF100
Thin Section Bearings
Angular contact ball bearing, Thin section bearing CSEF, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

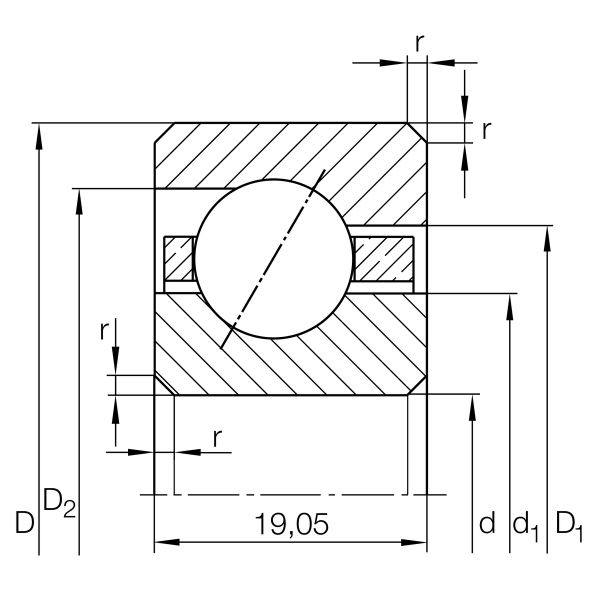

Main Dimensions & Performance Data
d
254 mm
Bore diameter
D
292.1 mm
Outside diameter
B
19.05 mm
Width
Cr
33,000 N
Basic dynamic load rating, radial
C0r
58,000 N
Basic static load rating, radial
CG
1,980 1/min
Limiting speed
≈m
1.99 kg
Weight
