INA CSEG075
Thin Section Bearings

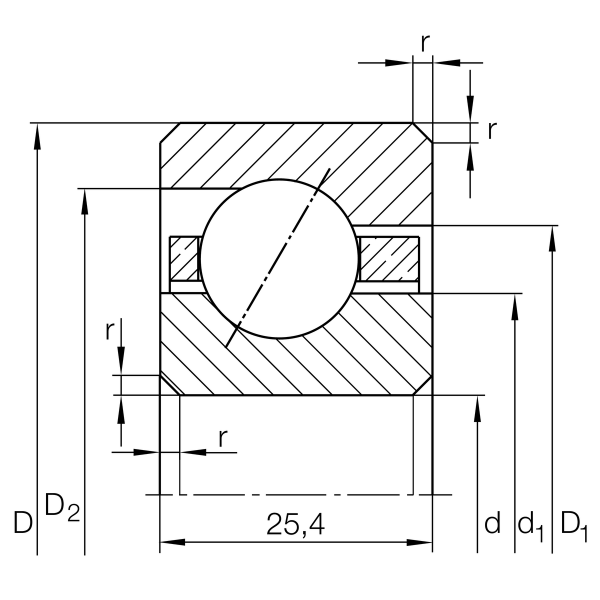

Angular contact ball bearing, Thin section bearing CSEG, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
190.5 mm
Bore diameter
D
241.3 mm
Outside diameter
B
25.4 mm
Width
Cr
47,000 N
Basic dynamic load rating, radial
C0r
63,000 N
Basic static load rating, radial
CG
2,480 1/min
Limiting speed
≈m
2.81 kg
Weight
