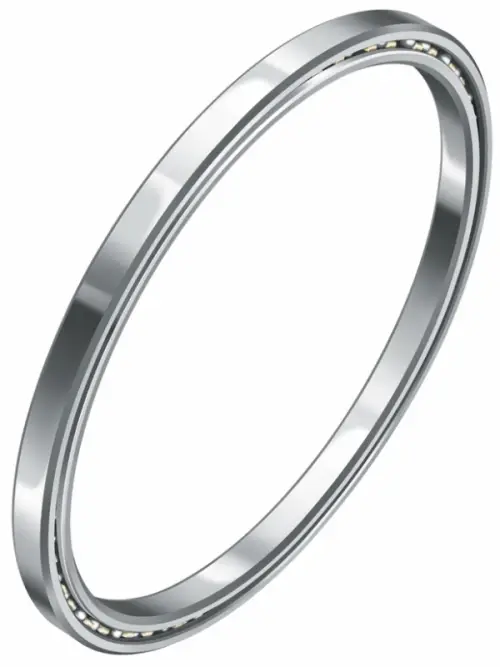

INA CSEG120
Thin Section Bearings
Angular contact ball bearing, Thin section bearing CSEG, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

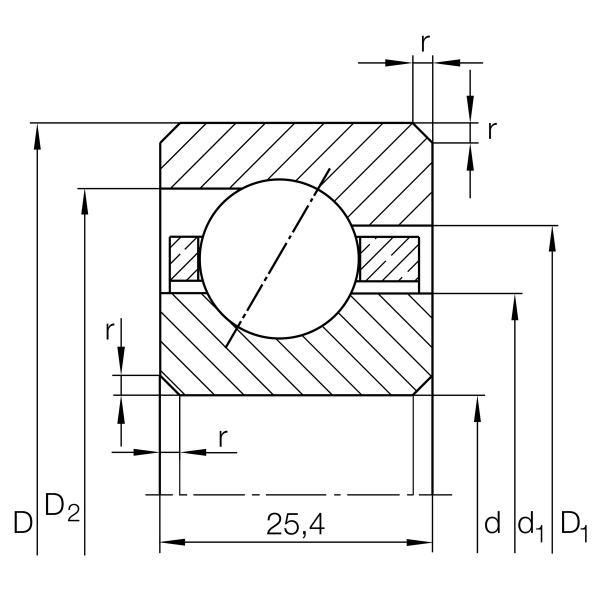

Main Dimensions & Performance Data
d
304.8 mm
Bore diameter
D
355.6 mm
Outside diameter
B
25.4 mm
Width
Cr
55,000 N
Basic dynamic load rating, radial
C0r
98,000 N
Basic static load rating, radial
CG
1,610 1/min
Limiting speed
≈m
4.29 kg
Weight
