INA CSXA025
Thin Section Bearings
Four point contact bearing, Thin section bearing CSXA, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

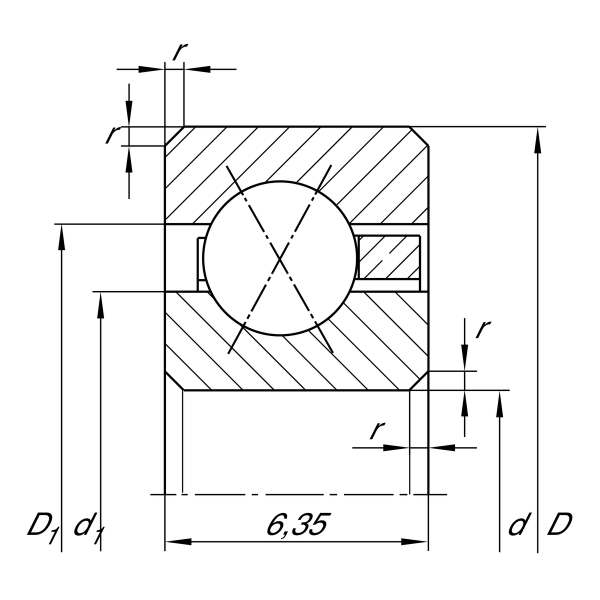

Main Dimensions & Performance Data
d
63.5 mm
Bore diameter
D
76.2 mm
Outside diameter
B
6.35 mm
Width
Cr
4,750 N
Basic dynamic load rating, radial
C0r
5,700 N
Basic static load rating, radial
CG
5,600 1/min
Limiting speed
≈m
60 g
Weight
