INA CSXB035
Thin Section Bearings
Four point contact bearing, Thin section bearing CSXB, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

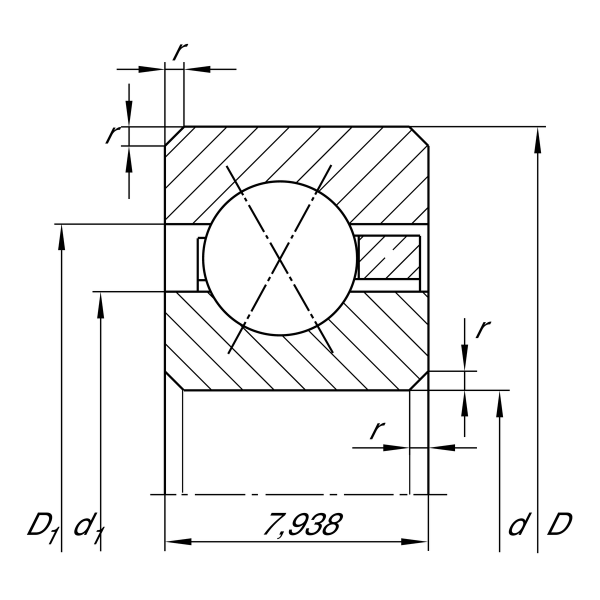

Main Dimensions & Performance Data
d
88.9 mm
Bore diameter
D
104.775 mm
Outside diameter
B
7.938 mm
Width
Cr
7,700 N
Basic dynamic load rating, radial
C0r
10,600 N
Basic static load rating, radial
CG
3,750 1/min
Limiting speed
≈m
120 g
Weight
