INA CSXB040
Thin Section Bearings

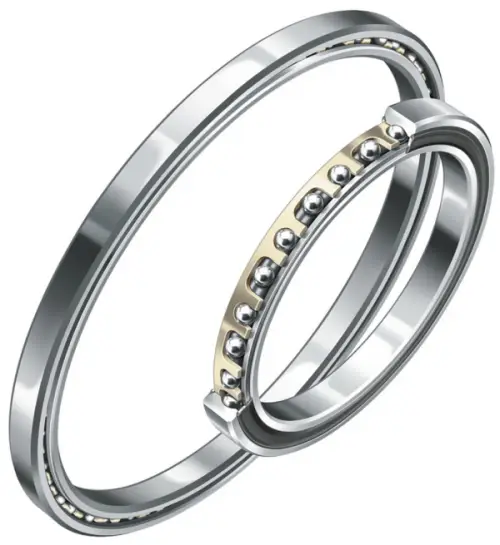

Four point contact bearing, Thin section bearing CSXB, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

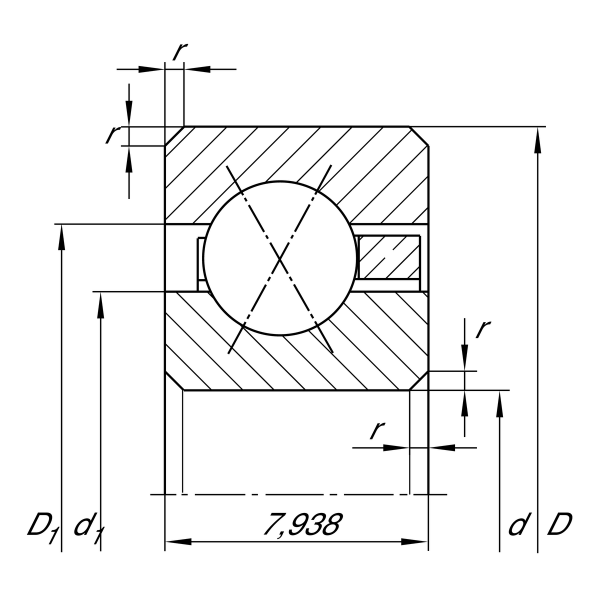

Main Dimensions & Performance Data
d
101.6 mm
Bore diameter
D
117.475 mm
Outside diameter
B
7.938 mm
Width
Cr
8,100 N
Basic dynamic load rating, radial
C0r
12,100 N
Basic static load rating, radial
CG
3,200 1/min
Limiting speed
≈m
130 g
Weight
