INA CSXC050
Thin Section Bearings
Four point contact bearing, Thin section bearing CSXC, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock

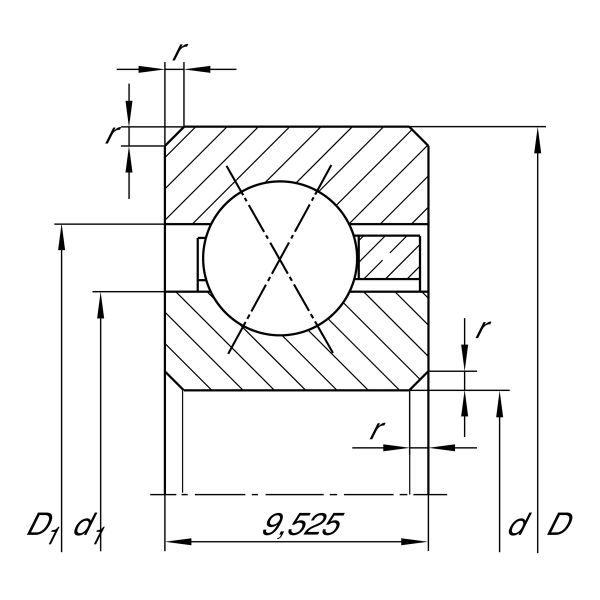

Main Dimensions & Performance Data
d
127 mm
Bore diameter
D
146.05 mm
Outside diameter
B
9.525 mm
Width
Cr
11,200 N
Basic dynamic load rating, radial
C0r
17,800 N
Basic static load rating, radial
CG
2,450 1/min
Limiting speed
≈m
260 g
Weight
