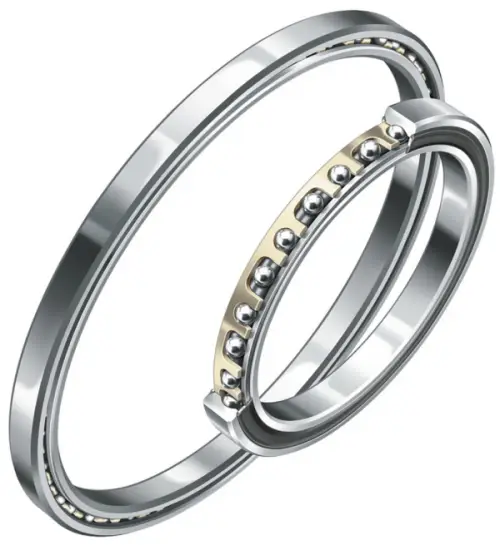

INA CSXC070
Thin Section Bearings
Four point contact bearing, Thin section bearing CSXC, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock

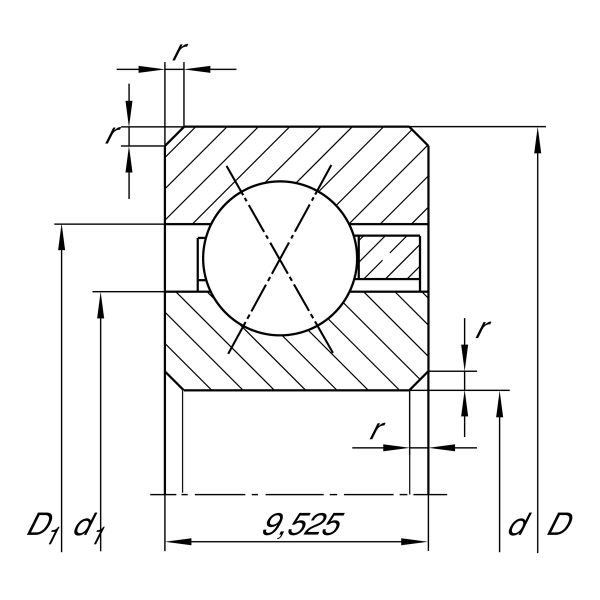

Main Dimensions & Performance Data
d
177.8 mm
Bore diameter
D
196.85 mm
Outside diameter
B
9.525 mm
Width
Cr
12,600 N
Basic dynamic load rating, radial
C0r
24,700 N
Basic static load rating, radial
CG
1,670 1/min
Limiting speed
≈m
330 g
Weight
