INA CSXC110
Thin Section Bearings
Four point contact bearing, Thin section bearing CSXC, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

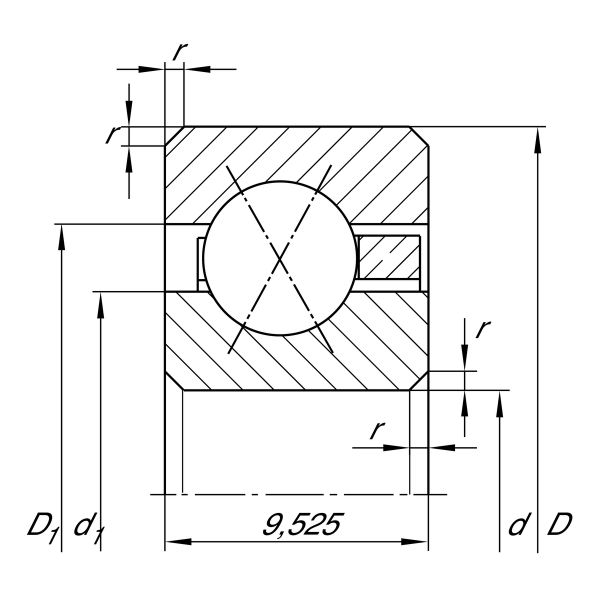

Main Dimensions & Performance Data
d
279.4 mm
Bore diameter
D
298.45 mm
Outside diameter
B
9.525 mm
Width
Cr
14,800 N
Basic dynamic load rating, radial
C0r
38,500 N
Basic static load rating, radial
CG
980 1/min
Limiting speed
≈m
0.53 kg
Weight
