INA CSXD055
Thin Section Bearings

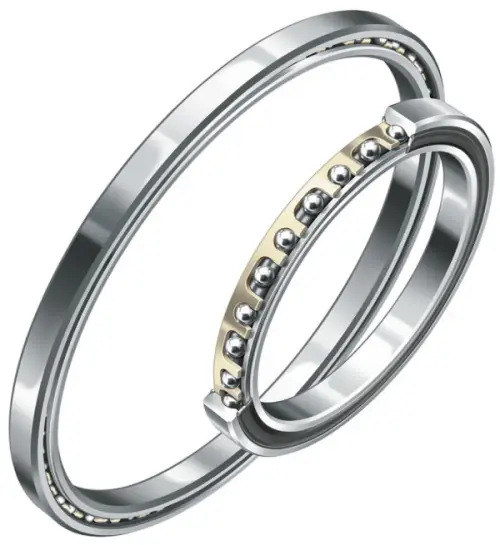

Four point contact bearing, Thin section bearing CSXD, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock

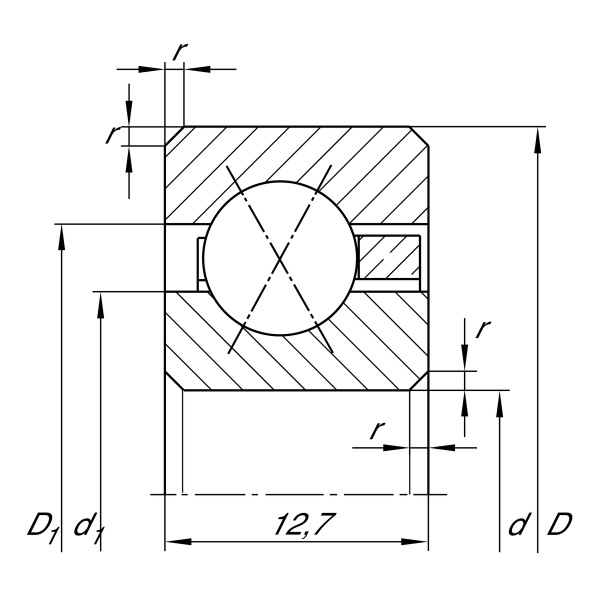

Main Dimensions & Performance Data
d
139.7 mm
Bore diameter
D
165.1 mm
Outside diameter
B
12.7 mm
Width
Cr
18,400 N
Basic dynamic load rating, radial
C0r
28,000 N
Basic static load rating, radial
CG
2,110 1/min
Limiting speed
≈m
480 g
Weight
