INA CSXD065
Thin Section Bearings
Four point contact bearing, Thin section bearing CSXD, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock

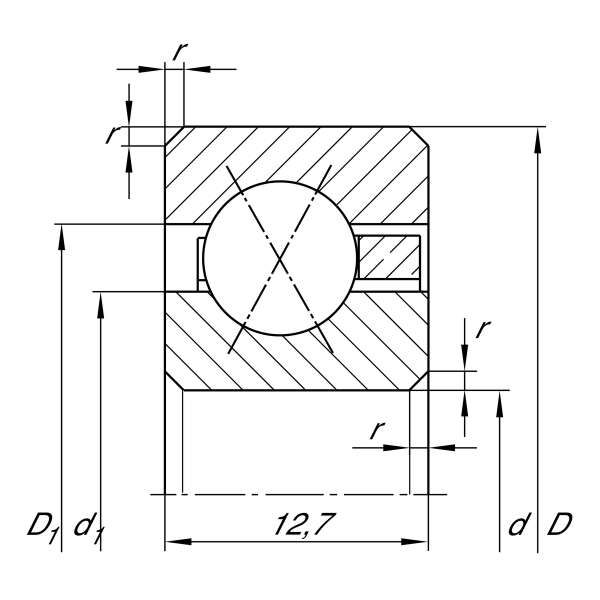

Main Dimensions & Performance Data
d
165.1 mm
Bore diameter
D
190.5 mm
Outside diameter
B
12.7 mm
Width
Cr
19,500 N
Basic dynamic load rating, radial
C0r
33,000 N
Basic static load rating, radial
CG
1,760 1/min
Limiting speed
≈m
0.55 kg
Weight
