INA CSXG060
Thin Section Bearings
Four point contact bearing, Thin section bearing CSXG, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock

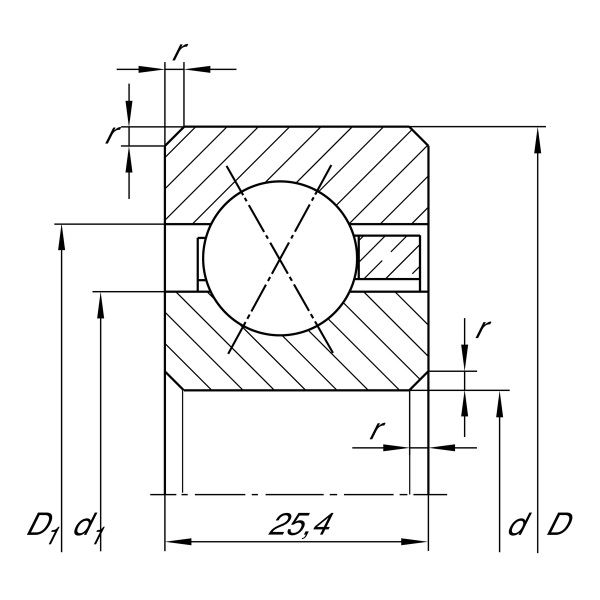

Main Dimensions & Performance Data
d
152.4 mm
Bore diameter
D
203.2 mm
Outside diameter
B
25.4 mm
Width
Cr
58,000 N
Basic dynamic load rating, radial
C0r
76,000 N
Basic static load rating, radial
CG
1,680 1/min
Limiting speed
≈m
2.31 kg
Weight
