INA CSXG080
Thin Section Bearings

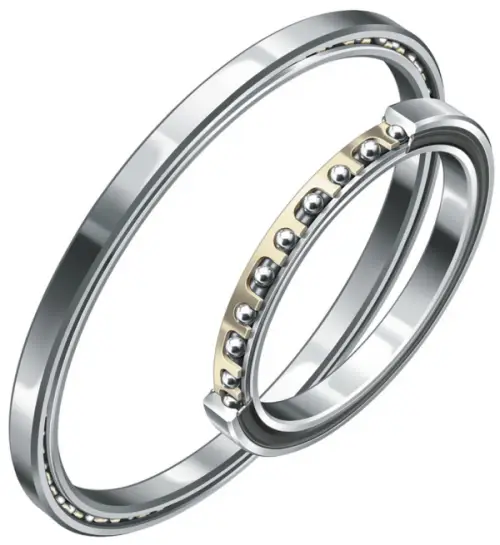

Four point contact bearing, Thin section bearing CSXG, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

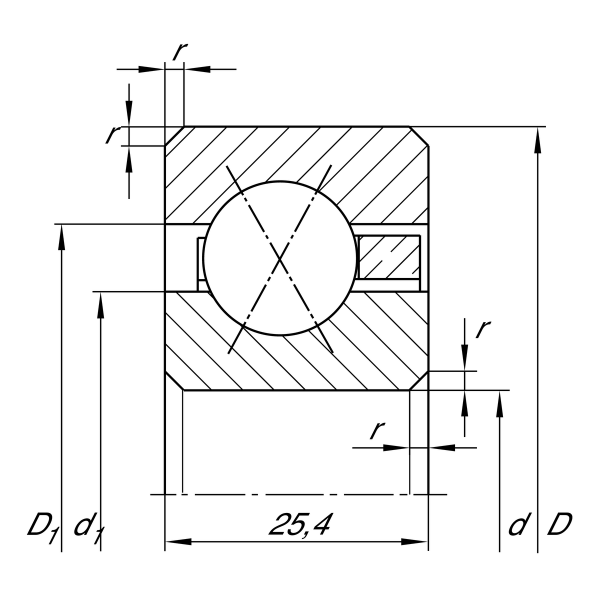

Main Dimensions & Performance Data
d
203.2 mm
Bore diameter
D
254 mm
Outside diameter
B
25.4 mm
Width
Cr
64,000 N
Basic dynamic load rating, radial
C0r
100,000 N
Basic static load rating, radial
CG
1,250 1/min
Limiting speed
≈m
2.94 kg
Weight
