INA CSXG120
Thin Section Bearings
Four point contact bearing, Thin section bearing CSXG, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

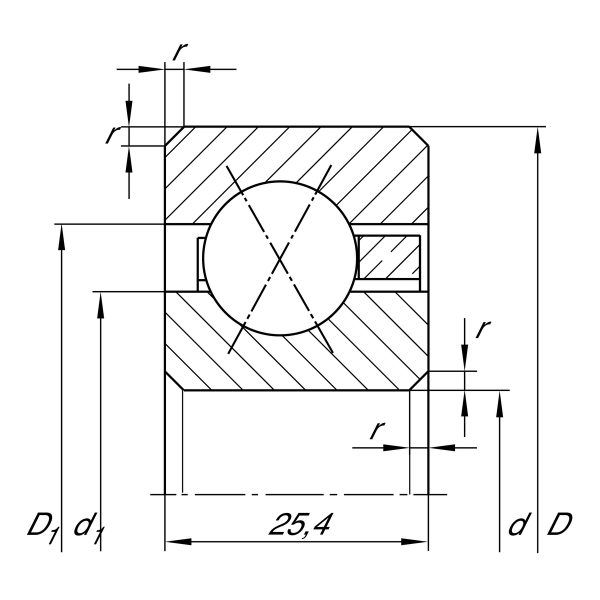

Main Dimensions & Performance Data
d
304.8 mm
Bore diameter
D
355.6 mm
Outside diameter
B
25.4 mm
Width
Cr
74,000 N
Basic dynamic load rating, radial
C0r
147,000 N
Basic static load rating, radial
CG
810 1/min
Limiting speed
≈m
4.21 kg
Weight
