INA CSXU090-2RS
Thin Section Bearings
Four point contact bearing, Thin section bearing CSXU..-2RS, seals, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

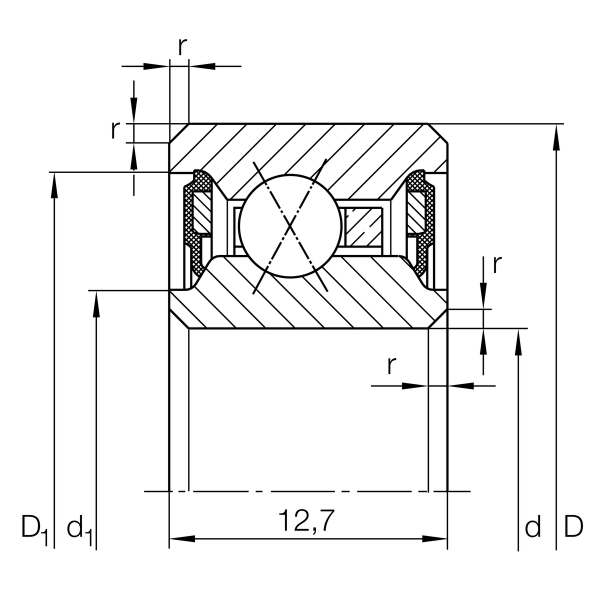

Main Dimensions & Performance Data
d
228.6 mm
Bore diameter
D
247.65 mm
Outside diameter
B
12.7 mm
Width
Cr
13,800 N
Basic dynamic load rating, radial
C0r
31,500 N
Basic static load rating, radial
CG
870 1/min
Limiting speed
≈m
0.54 kg
Weight
