INA CSXU100-2RS
Thin Section Bearings
Four point contact bearing, Thin section bearing CSXU..-2RS, seals, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

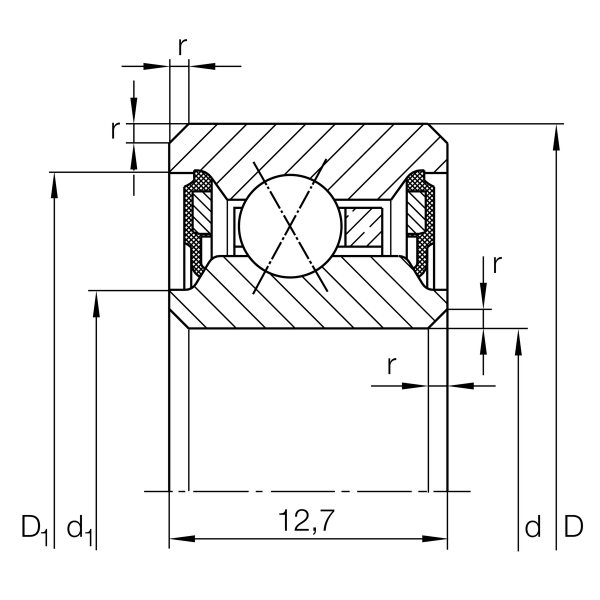

Main Dimensions & Performance Data
d
254 mm
Bore diameter
D
273.05 mm
Outside diameter
B
12.7 mm
Width
Cr
14,300 N
Basic dynamic load rating, radial
C0r
35,000 N
Basic static load rating, radial
CG
770 1/min
Limiting speed
≈m
0.59 kg
Weight
