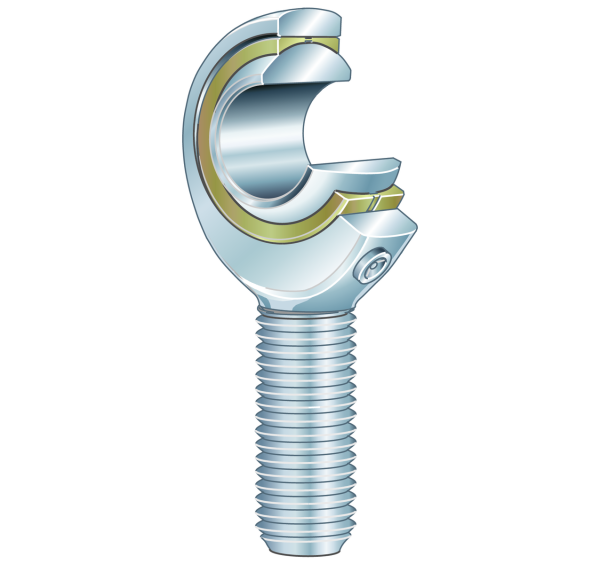

INA GAKR14-PB
Rod Ends
Rod end with external thread, right hand thread, requiring maintenance, sliding contact surface: steel/bronze, DIN ISO 12240-4, dimension series K, type M, open design
(BRAND)：INA
(Availability)：In Stock

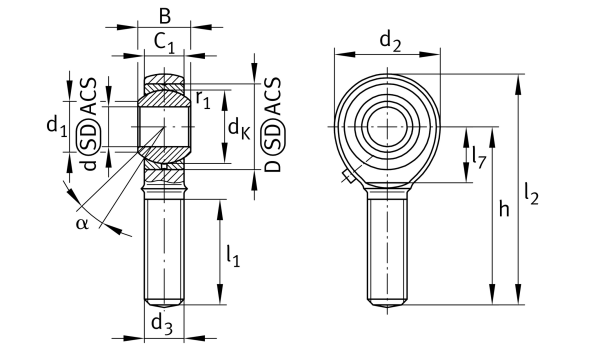

Main Dimensions & Performance Data
Cr
17,100 N
Basic dynamic load rating, radial
C0r
32,000 N
Basic static load rating, radial
d
14 mm
Bore diameter bearing
D
28 mm
Outside diameter bearing
l2
78 mm
Total length external thread head
B
19 mm
Width inner ring
d2
36 mm
Outer eye diameter
≈m
0.157 kg
Weight
Mounting dimensions
d1
16.8 mm
Outer flange diameter inner ring
r1smin
0.3 mm
Edge Spacing
