INA GAKSR12-PS
Rod Ends
Corrosion-resistant rod end, with external thread, right hand thread, maintenance-free, sliding layer: PTFE film, DIN ISO 12240-4, dimension series K, type F, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

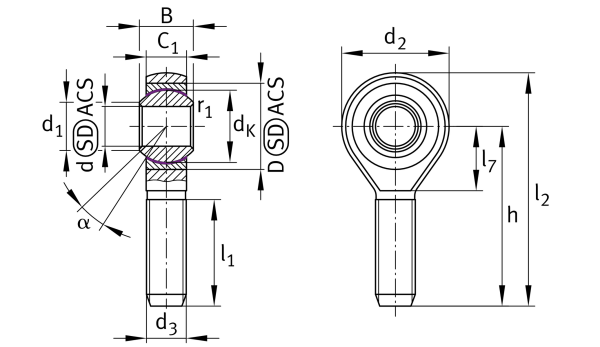

Main Dimensions & Performance Data
d2
33 mm
Outer diameter eye
Cr
24,000 N
Basic dynamic load rating
C0r
9,100 N
Basic static load rating
d
12 mm
Bore diameter bearing
D
26 mm
Outside diameter bearing
l2
70.5 mm
Total length
B
16 mm
Width inner ring
≈m
97 g
Weight
Mounting dimensions
r1s
0.3 mm
Smallest single chamfer dimension, inner ring
