INA GAKSR25-PS
Rod Ends
Corrosion-resistant rod end, with external thread, right hand thread, maintenance-free, sliding layer: PTFE film, DIN ISO 12240-4, dimension series K, type F, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

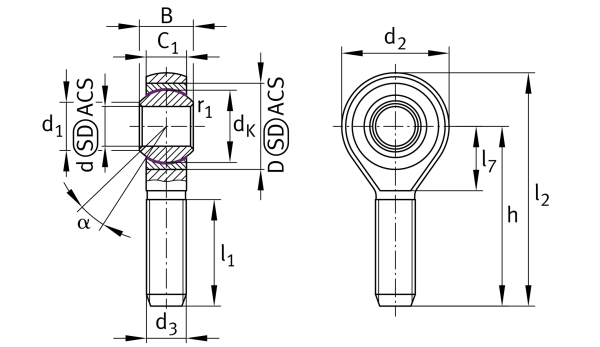

Main Dimensions & Performance Data
d2
61 mm
Outer diameter eye
Cr
85,000 N
Basic dynamic load rating
C0r
36,200 N
Basic static load rating
d
25 mm
Bore diameter bearing
D
47 mm
Outside diameter bearing
l2
125 mm
Total length
B
31 mm
Width inner ring
≈m
0.619 kg
Weight
Mounting dimensions
r1s
0.3 mm
Smallest single chamfer dimension, inner ring
