INA GAL10-DO
Rod Ends
Rod end with external thread, left hand thread, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-4, dimension series E, type M, open
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

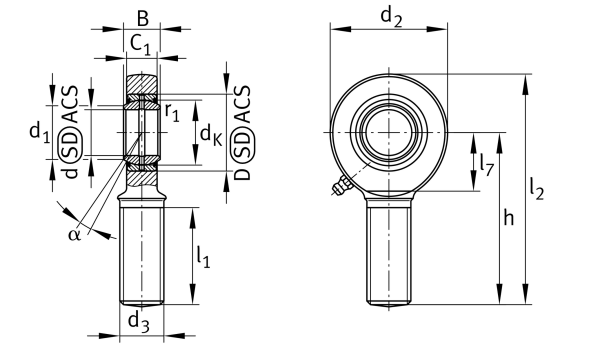

Main Dimensions & Performance Data
Cr
10,600 N
Basic dynamic load rating, radial
C0r
20,600 N
Basic static load rating, radial
d
10 mm
Bore diameter bearing
D
19 mm
Outside diameter bearing
l2
62.5 mm
Total length external thread head
B
9 mm
Width inner ring
d2
29 mm
Outer eye diameter
≈m
52.976 g
Weight
Mounting dimensions
d1
13.2 mm
Outer flange diameter inner ring
r1smin
0.3 mm
Edge Spacing
