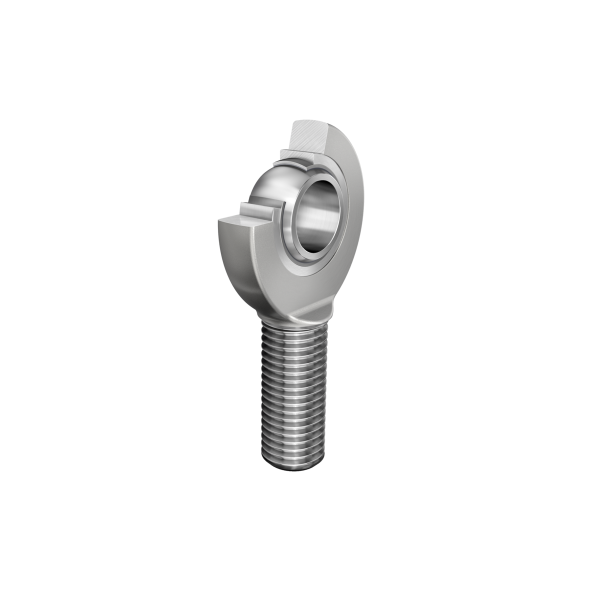

INA GAL35-UK-2RS
Rod Ends
Rod end with external thread, left hand thread, maintenance-free, sliding layer: ELGOGLIDE, DIN ISO 12240-4, dimension series E, type M, inner ring curved surface with hard chromium coating, sealed
(BRAND)：INA
(Availability)：In Stock

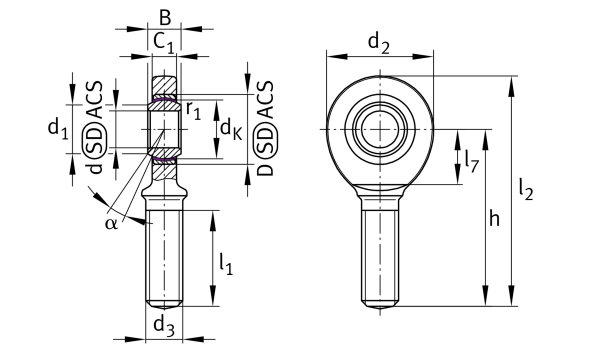

Main Dimensions & Performance Data
d2
82 mm
Outer diameter eye
Cr
212,000 N
Basic dynamic load rating
C0r
159,000 N
Basic static load rating
d
35 mm
Bore diameter bearing
D
55 mm
Outside diameter bearing
l2
181 mm
Total length
B
25 mm
Width inner ring
≈m
1.53 kg
Weight
Mounting dimensions
r1s
0.6 mm
Smallest single chamfer dimension, inner ring
