INA GAR30-UK-2TS
Rod Ends
Rod end with external thread, right hand thread, maintenance-free, sliding layer: ELGOGLIDE, DIN ISO 12240-4, dimension series E, type M, inner ring curved surface with hard chromium coating, sealed
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

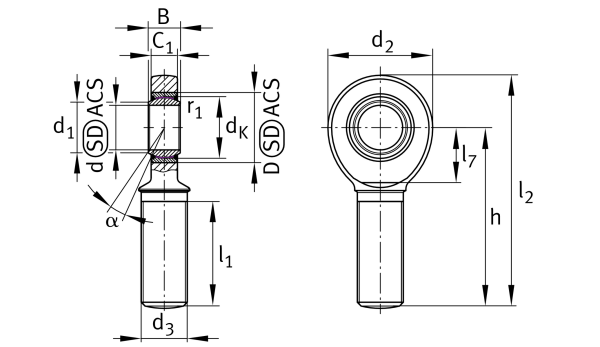

Main Dimensions & Performance Data
d2
73 mm
Outer diameter eye
Cr
65,900 N
Basic dynamic load rating
C0r
139,000 N
Basic static load rating
d
30 mm
Bore diameter bearing
D
47 mm
Outside diameter bearing
l2
146.5 mm
Total length
B
22 mm
Width inner ring
≈m
0.93 kg
Weight
Mounting dimensions
r1s
0.6 mm
Smallest single chamfer dimension, inner ring
