INA GIKL10-PB
Rod Ends
Rod end with internal thread, left hand thread, requiring maintenance, DIN ISO 12240-4. dimension series K, type F, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

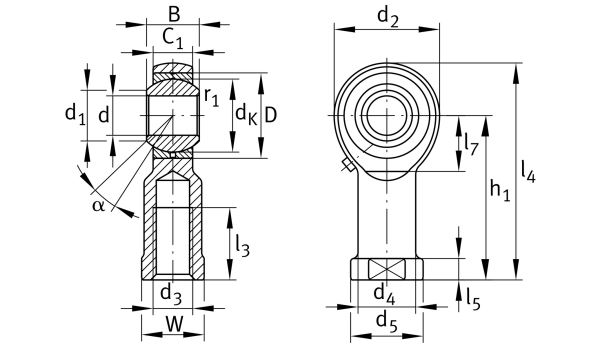

Main Dimensions & Performance Data
d
10 mm
Bore diameter bearing
D
22 mm
Outside diameter bearing
B
14 mm
Width inner ring
Cr
10,000 N
Basic dynamic load rating, radial
C0r
18,500 N
Basic static load rating, radial
Gr
0 - 0,035
Radial Clearance
≈m
77.2 g
Weight
