INA GIKL6-PW
Rod Ends
Rod end with internal thread, left hand thread, maintenance-free, sliding layer: PTFE film, brass outer ring, DIN ISO 12240-4, dimension series K, type F, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

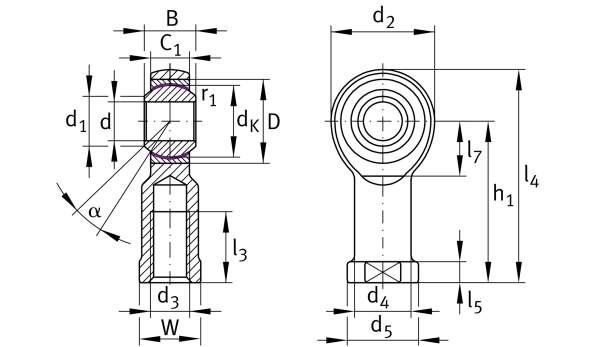

Main Dimensions & Performance Data
Cr
7,750 N
Basic dynamic load rating, radial
C0r
7,990 N
Basic static load rating, radial
d
6 mm
Bore diameter bearing
d2
20 mm
Outer eye diameter
l4
40 mm
Total length internal thread head
≈m
0.03 kg
Weight
Mounting dimensions
r1smin
0.3 mm
Edge Spacing
d1
8.9 mm
Outer flange diameter inner ring
