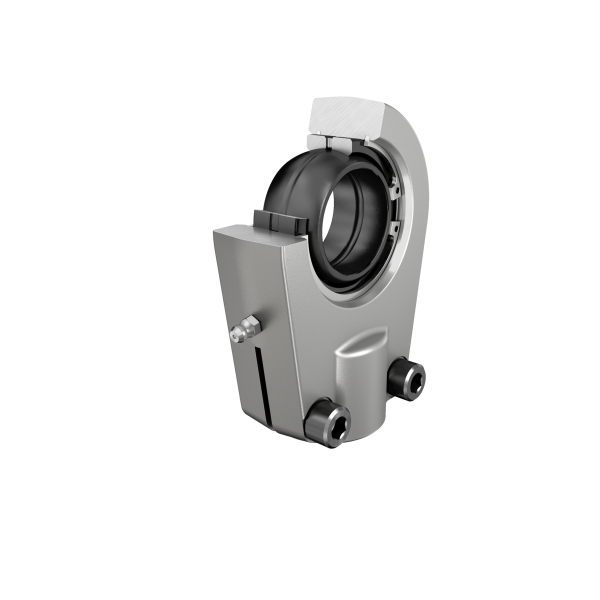

INA GIKPR16-PW
Rod Ends
Rod end with internal thread, right hand thread, maintenance-free, sliding layer: PTFE film, brass outer ring, DIN ISO 12240-4, dimension series K, type F, open design, with fine pitch thread connector for standard pneumatic cylinders to DIN ISO 15552
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
Cr
38,600 N
Basic dynamic load rating, radial
C0r
45,300 N
Basic static load rating, radial
d
16 mm
Bore diameter bearing
d2
42 mm
Outer eye diameter
l4
85 mm
Total length internal thread head
≈m
0.236 kg
Weight
Mounting dimensions
r1smin
0.3 mm
Edge Spacing
d1
19.3 mm
Outer flange diameter inner ring
