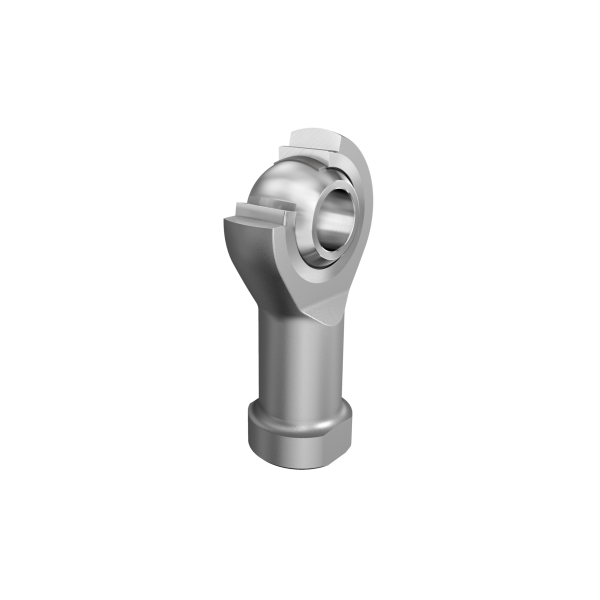

INA GIKPSR12-PS
Rod Ends
Corrosion-resistant rod end, with internal thread, right hand thread : maintenance-free, sliding layer: PTFE film, DIN ISO 12240-4, dimension series K, type F, open designfine pith thread connector for standard pneumatic cylinders to DIN ISO 15552
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

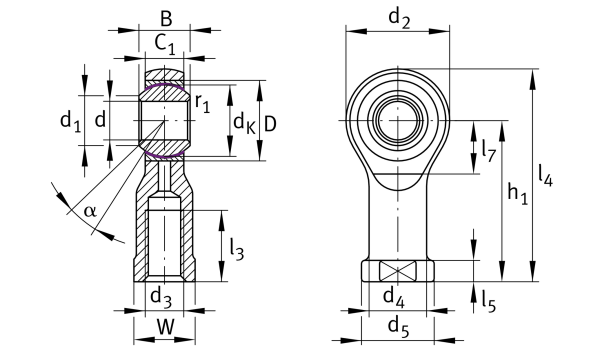

Main Dimensions & Performance Data
Cr
24,000 N
Basic dynamic load rating, radial
C0r
9,100 N
Basic static load rating, radial
d
12 mm
Bore diameter bearing
d2
33 mm
Outer eye diameter
l4
66.5 mm
Total length internal thread head
≈m
0.115 kg
Weight
Mounting dimensions
r1smin
0.3 mm
Edge Spacing
d1
15.4 mm
Outer flange diameter inner ring
